PIPING MADE EASY WITH RAPID INSTALLATION
Our RapidPress press fit system is fast, efficient and easy to use, making it the perfect solution for a wide range of applications. With options available in Stainless Steel 316 and 304. RapidPress is the go-to supplier for press fit systems in New Zealand.
[rev_slider slidertitle=”RapidPress” alias=”rapid-press”]
304 Rapidpress Fittings—just landed and ready to go!
This range includes 90-degree bends, 45-degree bends, spigot bends, couplers, and tees!
Now, why pay for 316 fittings when 304 fittings can help you cut costs without compromising on quality? If you are unsure whether you need 304 or 316, you can refer to our online chemical compatibility chart where it will show which is most suitable.
Our limited size range runs from 76mm to 108mm, making it perfect for a variety of applications
[wistia code="y2cn1isjug" thumbnail="https://www.themetalcompany.co.nz/wp-content/uploads/Website-Thumbnail-11.png"]
RapidPress Systems
With the RapidPress Stainless Steel press fit system for potable water, compressed air, steam and gas installations, RapidPress offers a comprehensive press-fit range in the dimension range from 15 – 168.3 mm OD, together with piping pressing tools and accessories.
[tmc_chart name="rapidpress_system"]
Applications
RapidPress press fittings are made of high-alloyed austenitic stainless Cr-Ni-Mo steel (AISI 316L/1.4404) and marked with the manufacturer name, diameter, DVGW test symbol, and internal code. The press fittings come with a black EPDM seal standardly fitted. These high-quality components are perfect for heating, cooling, compressed air, oil, and diesel lines in various sectors, including food & beverage, industrial, civil, and manufacturing.
Potable Water
Heating
Cooling
Compressed Air
Solar Thermal
Fire Protection Systems
Process Water
Wastewater
Lenticular Seal Profile
Up to 20% enlargement of sealing surface
OD 15mm – 168mm
Sizes availables for both Tube & Fittings
Stocked in New Zealand
Fast dispatch & delivery
Material Traceability
Test Certificates available
Leak Before Press
Up to 54mm Seals leak before press
Different Seal Options
EPDM, FKM, HNBR & Steam seals available
Seal Specifications

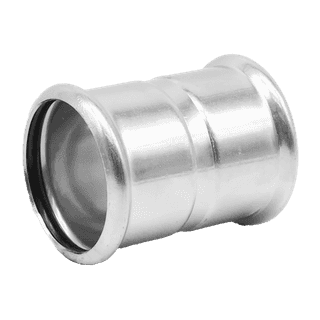

Black EPDM Seals
The black EPDM rubber seal is standard for stainless steel and carbon steel systems. EPDM is suitable for temperatures between -20 and +120 °C and for pressures up to a maximum of 230PSI / 16Bar. It has a host of applications and is used for drinking water, heating, cooling, steam, fire fighting, compressed air (oil free) and inert gas systems.

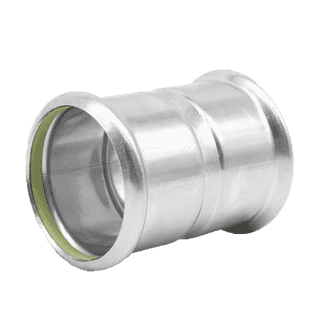

Green FKM Seals
The green FKM seal is used in high temperature or with harsh chemicals. It is suitable for temperatures between -20 and +220 °C and for pressures up to a maximum of 230PSI / 16Bar.

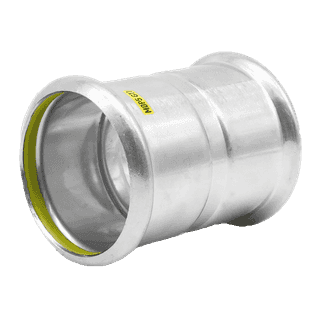

Yellow HNBR Seals
The yellow HNBR seals are used with our gas rated press-fit system as they are resistant to ageing and heat. HNBR stands for Hydrogenated Nitrile Butadiene Rubber and is also known as Highly Saturated Nitrile or HSN. They are suitable for temperatures between -20°C and +70°C, and for pressures up to a maximum of 70 PSI or 5Bar.
White STEAM Seals
The White seals are used for saturated steam press-sit system installations suitable for temperatures between –20 and 165°C and a maximum pressure of 7 absolute bars. The STEAM seal is compatible with hydrocarbons, oils and other aggressive substances. Made of AISI 316L, one of the best stainless steel alloys, tested and approved by the main International institutions.
What Are the Unique Features of RapidPress Press-Fit Seals?
Watch the video below for more details
Specifications
Pressure & Temperature Rating
• Standard Maximum operating pressure: 230PSI / 16Bar
• Up to 928PSI / 64Bar available on approved
applications.
• Operating temperature: -20°C / +120°C
• Maximum temperature: 220°C with RapidPress Extreme.
Metric Tube & Fittings
The RapidPress system uses metric size fittings and tube. Stocked sizes in stainless steel include 15, 22, 28, 35, 42, 54, 76.1, 88.9, 108, 139.7 and 168.3.
RAPIDPRESS ACO203BT
RAPIDPRESS ACO203XL
More Information?
Please contact the crew at The Metal Company, because We Make Buying Stainless Steel Easy.
